Hollow Metal Doors

All Steel DoorsC & J Building Products is pleased to offer a variety of hollow metal doors by All Steel Doors.  The doors are engineered and manufactured to meet the varying architectural specifications and design requirements for commercial, industrial and institutional projects.

Doors

  • Door Elevations1 3/4″ (45mm) in thickness, available in 20, 18, 16 and 14 gauge
  • Door skins are mechanically interlocked along the vertical hinge and lock edges. 16 and 14 gauge doors are available full weld seam
  • Designed with a 1/8″ (3mm) in 2″ (50mm) bevel for ease of fit and operation
  • Door face sheets are premium quality panel flat tension levelled and are flush and free from any seams or joints
  • Hollow metal doors are available with various types of cores, all bonded under pressure. Positive pressure and “S” smoke label approved
  • Sound transmission assemblies (STC) available
  • Fire labelled from 3/4 hour to 3 hours



Door Material Specifications

  • Core OptionsStandard coating
    – Hot dipped galvanized steel (Galvanneal) to ASTM A653-B, coating A40 (ZF120), 0.40oz/ft2 (120g/m2)
  • Options available
    – G90 (ZF275)
    – Stainless Steel



Door Series

  • LS Series – Galvanneal Steel Standard Lock Seam Flush Doors

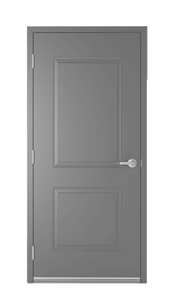

  • Embossed Doors – Galvanneal Steel Standard Lock Seam Embossed Doors
  • HS Series – Galvanneal Steel Stiffened Standard Lock Seam Flush Doors (special order)
  • WS Series – Steel Stiffened Continuously Welded Seam Flush Doors (special order)
  • SSD Series – Stainless Steel Doors (special order)

Images courtesy of All Steel Doors
